INOV8 Carbon Upper Bulkheads for XRAY X4'26 (Various Types)
$25.00 - $32.00
Introducing our brand new Carbon Upper Bulkheads for XRAY X4'26!
Engineered to allow 4 different options to maximize the performance of your X4'26
Manufactured from 3mm Stiff Weave Carbon Fiber to provide maximum strength and rigidity.

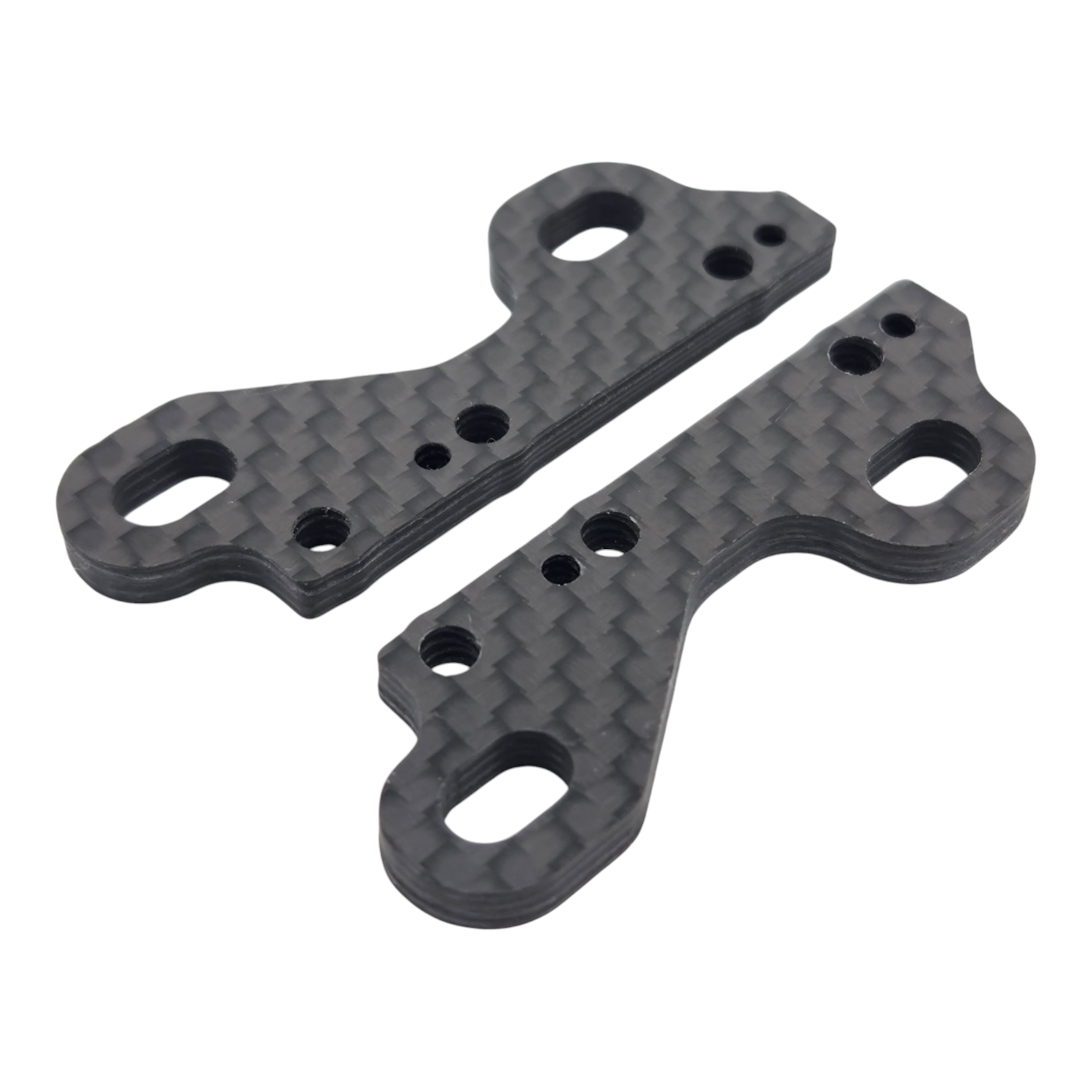

- Type 1: Same Geometry as Original Upper Bulkheads for use with Kit Upper Arms
-
Type 2: Same Geometry as Original, For turnbuckle style links only
- Using these allows for more simplified mounting of the turnbuckle links.

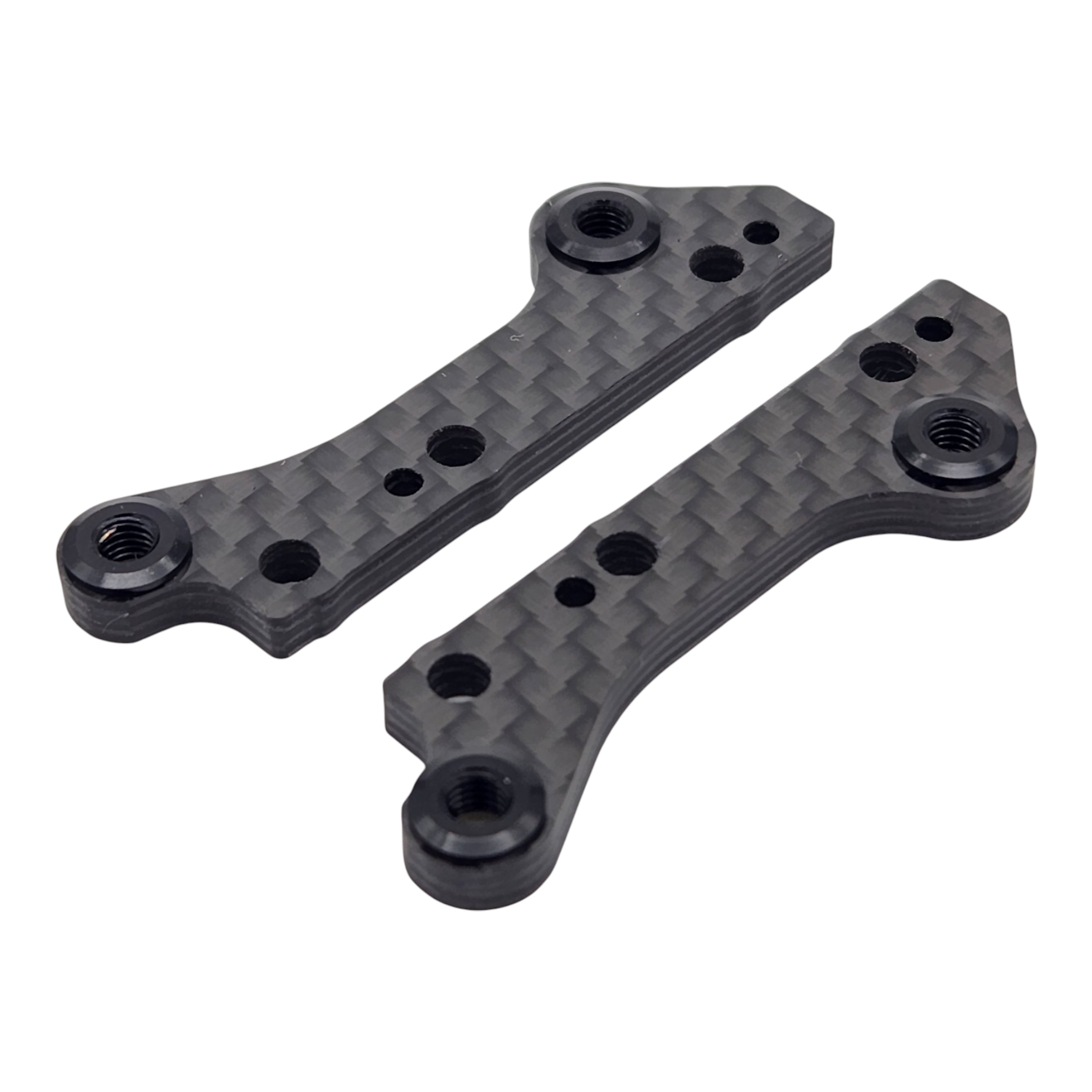

- These feature built in M3 Inserts which can be screwed into with the optional XRAY #362651 4.9mm Male Ball studs, or by screwing an M3x8-M3x10mm Grub Screw into the kit female ball studs to create a male ball stud
-
Type 3: 1.5mm Longer Length Link, For turnbuckle style links only
- Using these lengthens the link slightly, so it's not as long as the hillbilly style but not as short as the kit setting, a great middle ground!

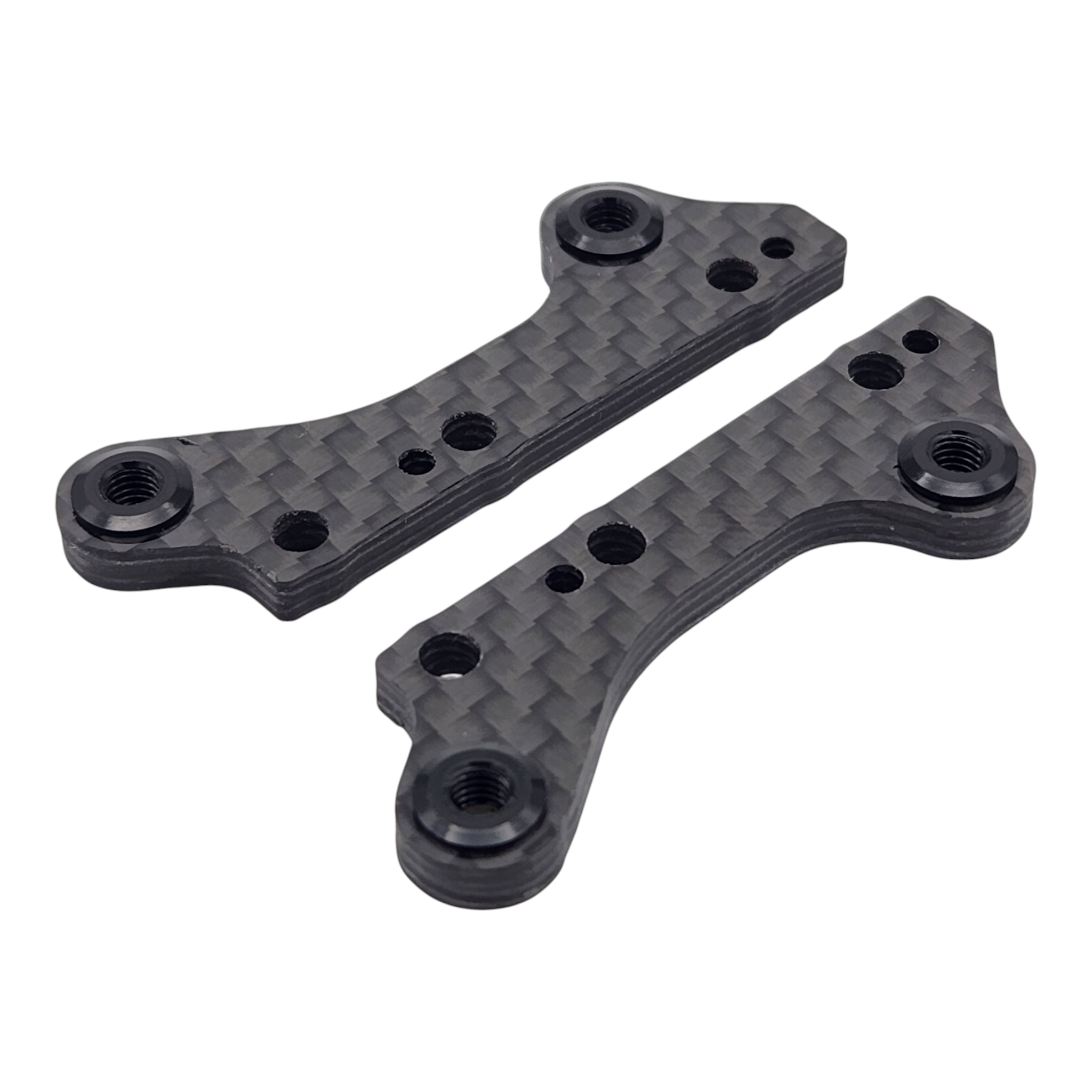

- These feature built in M3 Inserts which can be screwed into with the optional XRAY #362651 4.9mm Male Ball studs, or by screwing an M3x8-M3x10mm Grub Screw into the kit female ball studs to create a male ball stud
-

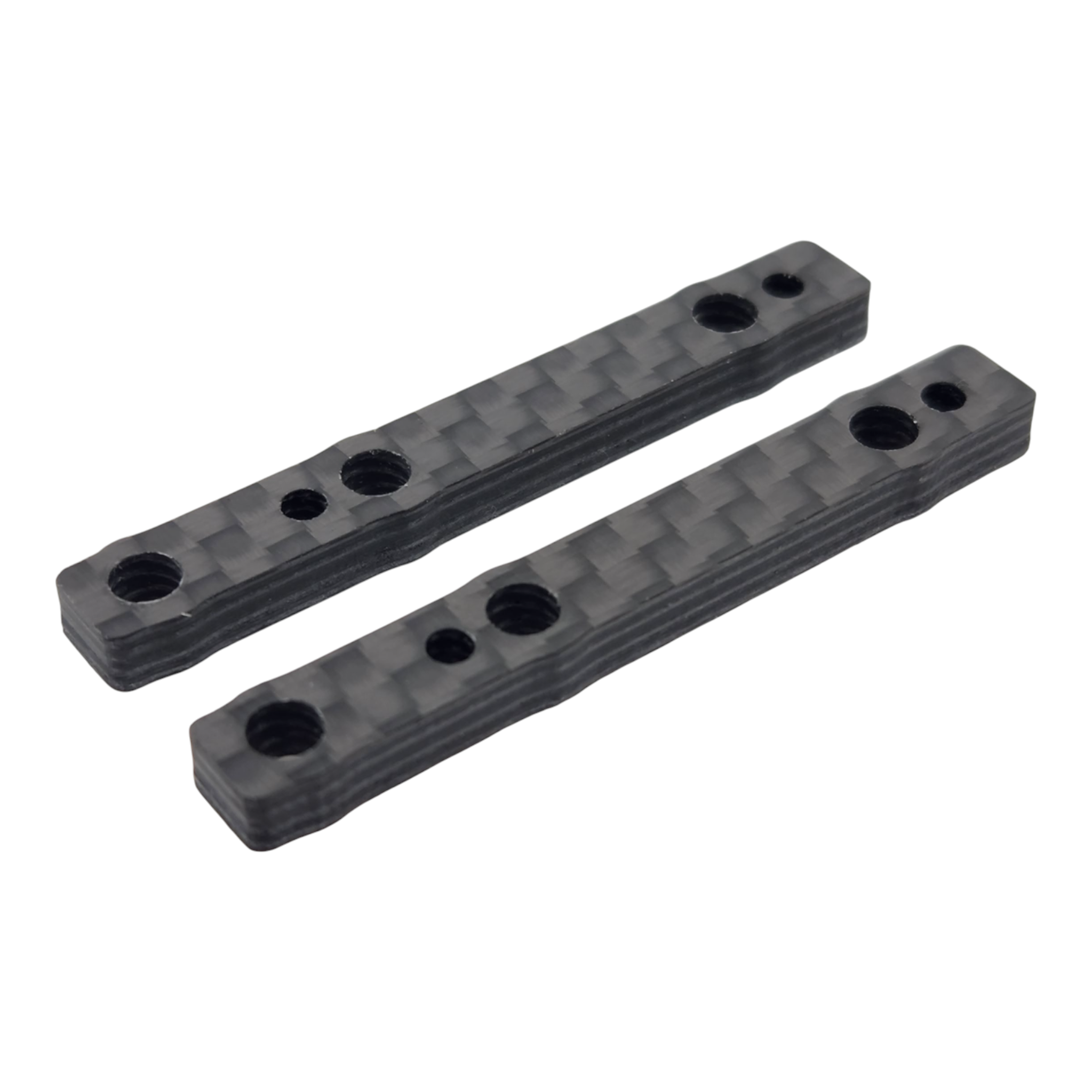

Type 4: For Hillbilly (Long Bulkhead Mounted Link), For turnbuckle style links only
- Using these reduces weight and lowers the CG! It also looks a lot cleaner.
Choose the best type for your X4'26!
Includes: 2pcs Upper Bulkhead
